Precast Concrete Septic Tanks
Dura-Con entered the Manitoba septic tank market in 2008, starting with 3 different models. We now offer 5 different sizes, and have made many custom configurations for a lot of customers, from western Ontario to Saskatchewan. All tanks are approved to the latest CSA standard B66, certified for depths up to 12 feet. Tanks have lifting hooks cast into the concrete to provide a safe and easily accessible means of installation. We also have a standard 4" PolyLok inlet, which eliminates messy and inconvenient gluing with a simple hose clamp. Tanks have a standard 30" inside diameter manhole. We deliver our tanks and will crane them into place. Give us a call at 204-746-8822!

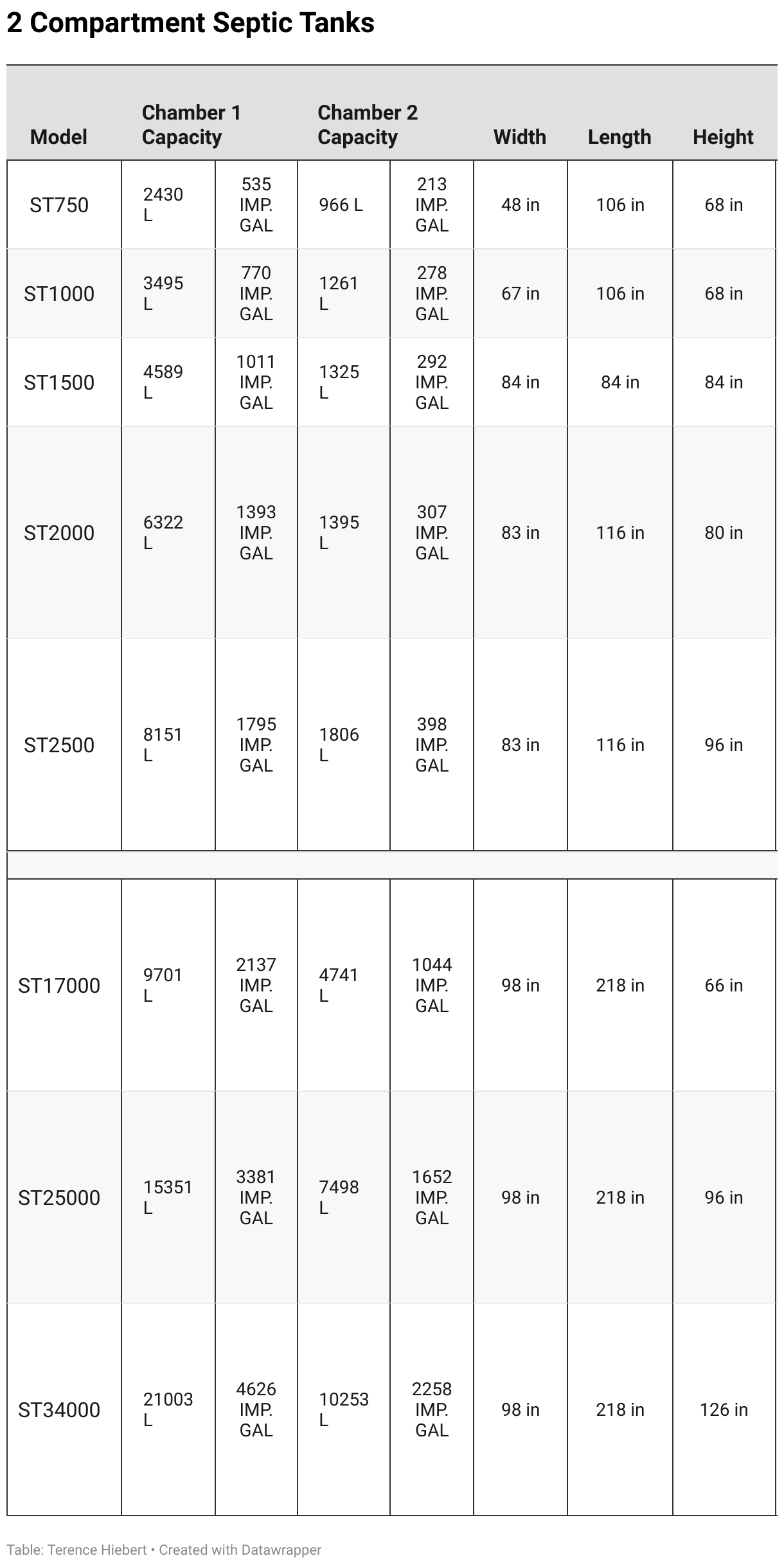

2 Compartment Septic Tanks | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Model | Chamber 1 Capacity | Chamber 2 Capacity | Width | Length | Height | Weight | Max Burial Depth (CSA) | Link to Shop Drawing | ||||
ST750 | 2430 L | 535 IMP. GAL | 966 L | 213 IMP. GAL | 48 in | 106 in | 68 in | 4120 KGS | 9085 LBS | 120 in | 3.06 m | ST750 |
ST1000 | 3495 L | 770 IMP. GAL | 1261 L | 278 IMP. GAL | 67 in | 106 in | 68 in | 5150 KGS | 11356 LBS | 120 in | 3.06 m | ST1000 |
ST1500 | 4589 L | 1011 IMP. GAL | 1325 L | 292 IMP. GAL | 84 in | 84 in | 84 in | 6885 KGS | 15181 LBS | 120 in | 3.06 m | ST1500 |
ST2000 | 6322 L | 1393 IMP. GAL | 1395 L | 292 IMP. GAL | 83 in | 116 in | 80 in | Total: 8357 KGS | 18427 LBS | 120 in | 3.06 m | ST2000 |
Top: 3393 KGS | 7482 LBS | |||||||||||
Bottom: 4964 KGS | 10946 LBS | |||||||||||
ST2500 | 8151 L | 1795 IMP. GAL | 1806 L | 292 IMP. GAL | 83 in | 116 in | 96 in | Total: 8357 KGS | 18427 LBS | 120 in | 3.06 m | ST2500 |
Top: 3393 KGS | 7482 LBS | |||||||||||
Bottom: 4964 KGS | 10946 LBS |
